Western Canada’s glaciers could shrink by as much as 95% by 2100, study finds

This is a re-post from Robert McSweeney at Carbon Brief

The Canadian Rockies, which sit as a backdrop to many a stunning vista, could be almost entirely devoid of glaciers by the end of the century, a new study suggests.

Researchers modelled the impact of rising temperatures on glaciers across western Canada.

The results show widespread ice loss by 2050, and ice all but vanishing a few decades later.

Rising temperatures

Around 27,000 square kilometers of Western Canada is covered by glaciers, an area similar in size to the amount of ice in the Himalayas or the whole of South America.

For the new study, published in Nature Geoscience, the researchers developed a model to see how rising temperatures will affect the volume and area of glaciers in three regions in western Canada. These regions are shown in the map below: the coast (green sections), the interior (pink) and the Rockies (blue).

Clarke Et Al Fig1

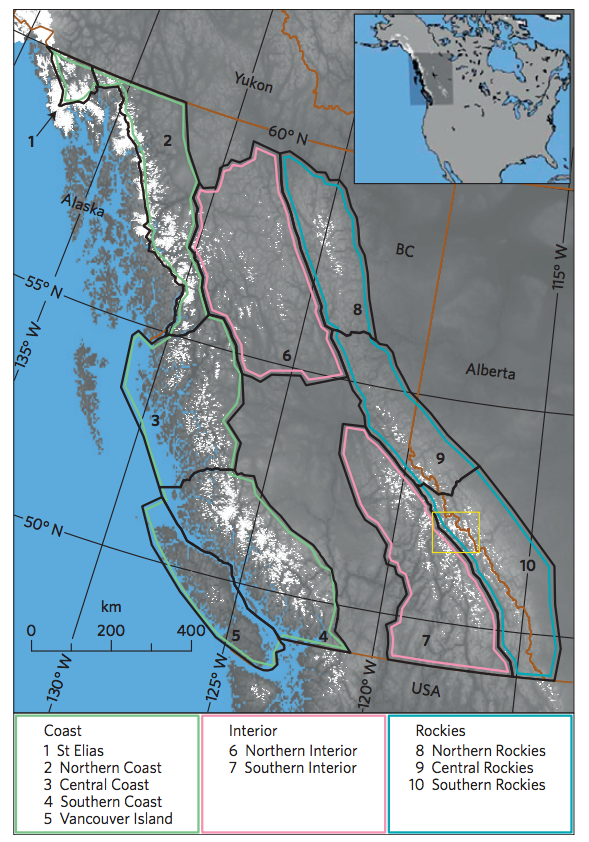

Map of study area in western Canada, including three subregions of the Coast (green), Interior (pink) and Rockies (blue). Present-day (2005) glacier extent is shown in white. Source: Clarke et al (2015)

The researchers looked at how temperature evolved under four different scenarios for future greenhouse gas emissions. Their model then calculated the amount of ice loss for glaciers in each region for each scenario.

You can see in the graphs below the striking losses of ice the model calculates. Even under the most stringent emissions cuts (RCP2.6, shown by the blue lines), glaciers in the Interior (bottom left graph) and Rockies (top right) regions are projected to lose around 70% of their ice compared to 2005. Under higher emissions, they would lose 95% of their ice.

Up until the middle of the century, the fate of most glaciers is similar for all four scenarios, the researchers say. But by 2100, there is a clearer separation between the amount of ice loss for each one.

Clarke Et Al 2015 Fig3

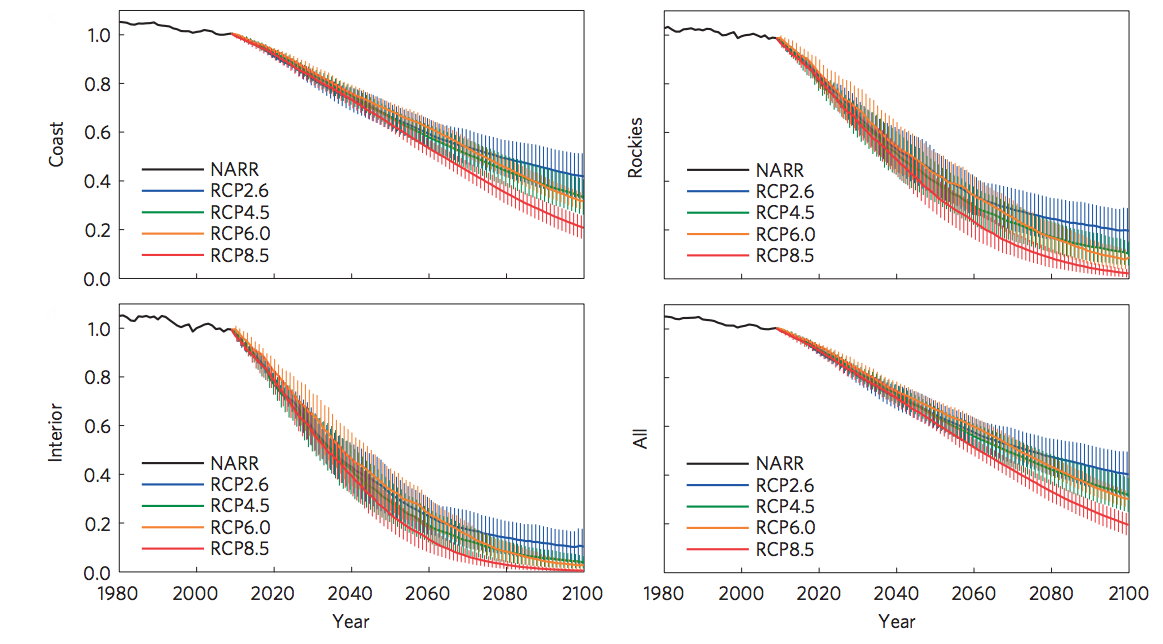

Project percentage changes for ice volume of glaciers in each region: Coast (top left), Interior (bottom left), Rockies (top right) and All (bottom right). For four emissions scenarios, from lowest (RCP2.6, blue) to highest (RCP8.5, red). NARR (black) shows observed changes. Source: Clarke et al (2015)

Unhelpful effects

The projected decline in ice volume is mainly caused by rising temperatures, Prof Garry Clarke, lead author and professor of glaciology at University of British Columbia, tells Carbon Brief:

"This has two different effects, neither of which is helpful to glaciers: One is more summer melting, and, two, is less winter snowfall."

Precipitation could actually increase under climate change, says Clarke, but rising winter temperatures mean it is more likely to fall as rain than as snow. And this is of no benefit to glaciers.

Ice loss is least drastic in the coastal region as it tends to receive more snow during winter, and cooler temperatures mean it loses less ice in summer, Clarke says. The glaciers in the very northwest are the most resilient to warming because they are at a higher elevation and get more snow than the other areas.


The researchers' methods are at the cutting-edge for studying the fate of glaciers across large regions, says Dr Tobias Bolch, a senior glacier researcher at the University of Zurich, who wasn't involved in the study.

Glacier models tend to consider either an individual glacier in detail, or ice changes across a region more broadly, says Clarke. Theirs is the first to model both, analysing many glaciers in detail at the same time.

Fig _1B

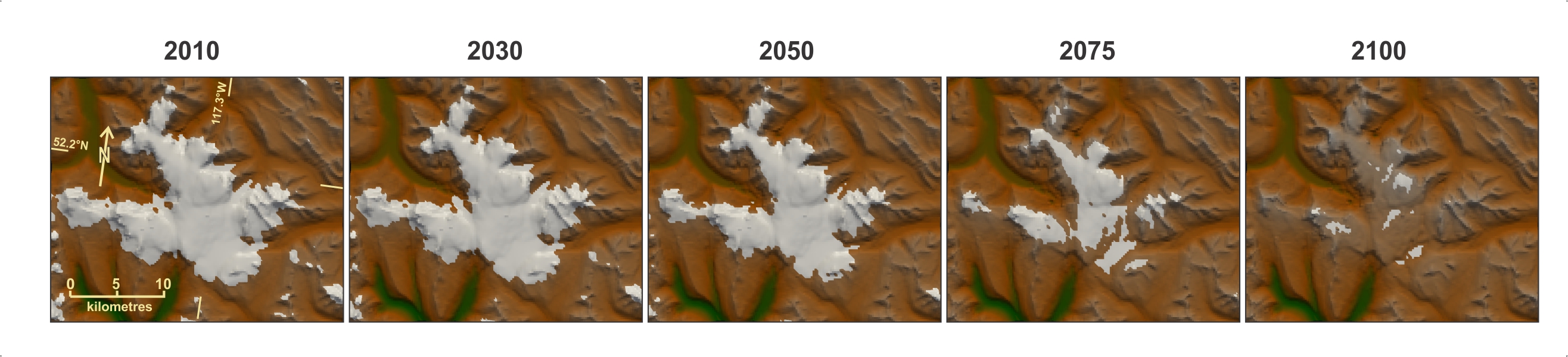

Glacier model images of projections of ice extent for the Columbia Icefield during the 21st century, under a high emissions scenario (RCP8.5). Credit: Garry Clarke.

Dr Alex Gardner, a solid earth research scientist at the Jet Propulsion Laboratory at Caltech, tells Carbon Brief that the study manages to model the flow of ice in the glaciers:

"Since mountain glaciers, by definition, are located in areas of complex topography, modeling this redistribution of ice has proven challenging at large scales. Garry Clarke and his colleagues make a considerable contribution to the field of glaciology by developing and employing a mathematical framework to do just this."

The authors have also made all the projections available online, so that other scientists can build on their work.

'Future is dim'

The loss of these glaciers would contribute around 6mm to global sea levels. This is relatively modest, says Clarke, but there are other impacts that he thinks could be more of a concern.

For example, the glacier meltwater feeds alpine streams, keeping the region cool during hot, dry summer months. Losing this natural thermostat would affect freshwater ecosystems, he says.

But Clarke thinks the major loss will be the visual changes to the landscape as mountains lose their glacier cover. The glaciers provide a key tourist attraction. The Athabasca Glacier in the Rockies, for example, is the most-visited glacier in North America. Millions of people each year visit to clamber over the huge mass of ice, yet it is retreating and thinning already, says Clarke:

"Athabasca Glacier is doing badly at present and will fare worse as climate warming continues."

Canada's Glacier National Park, which sits in the 'interior' region of the study, will experience near-total loss of its glaciers by 2100, says Clarke.

The glaciers also give Canada's iconic mountain lakes their distinctive colour. Fine sediments, known as rock flour, are eroded by glaciers and then washed downstream by meltwater.

Banff National Park, for example, attracts 3-4 million tourists every year, many of whom come to see its brilliant emerald lakes, such as Lake Louise. However, as the glaciers disappear, these lakes will look very different by the end of the century, Clarke warns:

"The future of this kind of tourism is dim."

Shutterstock _114350314 (1)

Lake Louise, as seen from the Big Beehive mountain. Source: Shutterstock

So, is there any good news from this study? Clarke thinks the glaciers and lakes could still have a future if we act quickly to cut emissions. He says:

"If we had the global will to hold to the mildest likely scenario for greenhouse gas increases, mountain glaciers would not entirely disappear from our study area."

Clarke, G.K.C. et al. (2015) Projected deglaciation of western Canada in the twenty-first century, Nature Geoscience, doi:10.1038/ngeo2407
