Comments 1 to 23:

1. funglestrumpet at 08:19 AM on 2 December, 2011
   Try as hard as I might, I cannot see why proving that climate change is human in origin should have any bearing on the need to take action. We know that atmospheric CO2 acts as a greenhouse gas and we know how to reduce the amount of it we humans release into the atmosphere. So let's just get on with reducing it. Every time we argue about whether the change in the climate that we are experiencing is human in origin or not gives the politicians, who have an urgent need to protect their job in elections that come by every four or five years, an excuse to procrastinate. And heaven knows they have been excellent procrastinators when one looks at what has actually been achieved since Kyoto. It sickens me to think that Monckton and his ilk are winning hands down as things are. Though I doubt they will enjoy the prize they earn. I have given the example elsewhere on this site that you would not refuse to change direction or speed because the iceberg dead ahead is not human in origin.
   Response: [muoncounter] You're wildly off-topic for this thread (which should have links to all of the existing it's not cosmic rays threads).
2. jsmith at 05:45 AM on 18 February, 2014

   I was looking for this argument on the "Climate myths sorted by taxonomy" page, but I could not find it. Is there a reason it isn't on that page, and if not, would someone who can consider adding it there? I imagine it should be added under "It's cosmic rays".

3. knaugle at 02:11 AM on 28 June, 2014

   For a recent example where this experiment is in fact cited by a climate denier, check out the Letters to the Editor of the Lynchburg, VA News and Advance on 06/26/2014 (2nd Paragraph):

   http://www.newsadvance.com/opinion/letters_to_editor/letters-to-the-editor-for-thursday-june/article_f5f33af6-fca3-11e3-bb80-001a4bcf6878.html

   It is sadly amazing how such things take a life of their own.  However the letter did send me looking for what the experment was doing.  As is often the case, some folk put words into scientists' mouths without first asking them.

   Response:

   [JH] Activated link.

4. FredColbourne at 23:33 PM on 1 March, 2015

   I commend you for your strictness in interpreting the results of the Cloud Experiment. As you quite rightly say, the lead author (Jasper Kirby) has been very cautious in his claims, limiting himself to the results of the CERN experiments. You can see this very clearly in the recent paper that reports the experimental results.

   In his lecture available via Youtube, Dr Kirby was careful to warn his audience concerning the uncertainties in the putative mechanism relating GCR to climate via cloud formation. There is a big ? mark in the graphic and he points it out to the audience.

   https://www.youtube.com/watch?v=63AbaX1dE7I

   In an earlier paper Dr Kirby was likewise cautious about what was expected from the Cloud Experiment, together with the uncertainties in relation to climate.

   He stated,

   "Although recent observations support the presence of ioninduced
   nucleation of new aerosols in the atmosphere, the possible contribution of such new particles to changes in the number of cloud condensation nuclei remains an open question." Page 32.

   Cosmic Rays, Clouds, and Climate (CERN-PH-EP/2008-005, 26 March 2008. Surveys in Geophysics 28, 333-375.

   LINK

   Only the most intrepid readers will wish to study the full paper, however the Youtube video contains the gist of the paper and several of the graphics.

   Dr Kirby's presentation is clear and I believe accessible to non-physicists.

   There is a reference to protons and muons at one point, but readers of your blog will know that Wikipedea has good explanations of these.

   Response:

   [RH] Shortened link.

5. jd_germany at 17:45 PM on 28 May, 2015

   Quick question: What would the cosmic ray hypothesis say about the effect on upper atmosphere temperature change?

6. CBDunkerson at 22:45 PM on 28 May, 2015

   jd_germany, assuming we are talking about the 'cosmic ray hypothesis' which holds that 'a decrease in cosmic rays penetrating the atmosphere could lead to decreased cloud formation and thus increased solar radiation reaching the surface' (there are others) then there would be no change in the 'greenhouse effect' and we wouldn't expect to see the cooling of the upper atmosphere (i.e. stratosphere) which is characteristic of greenhouse warming (yet, we do).

   Similarly, if global warming were being driven by increased solar radiation (introduced by cosmic rays or otherwise) then we would expect to see the greatest warming increases during the day (we don't), in summer (nope), and near the equator (wrong again).

   In short, this 'hypothesis' is sort of the opposite of scientific progress... multiple lines of evidence all converge to show that it is false.

7. Aaron S at 11:37 AM on 31 July, 2016

   Based on the abundant literature that does exist supporting the influence of Cosmic Rays on Earth's climate, how can anyone justify the IPCC ignoring cosmic rays and scenarios for stronger solar forcing in some of their global climate model iterations? The sun's activity significantly increased coeval with industrialization into a sustained solar max (see first link below), and it seems critical to understand the role of both solar activity and AGW to attempt to model Earth's climate.

   Recent examples of the abundant literature that Cosmic Rays do influence Earth's climate (beyond the CERN nature paper above) include:

   Pnas 9400 yr cosmic ray record correlated with asian monsoon.
   http://m.pnas.org/content/109/16/5967.full

   Pnas paper showing causation that cosmic rays force global climate in multi year time intervals and also a century of strong correlation
   http://m.pnas.org/content/112/11/3253.full

   Video of Cern Paper (simple 5 min overview):

   https://home.cern/about/updates/2016/05/cloud-shows-pre-industrial-skies-cloudier-we-thought

   Older papers include:

   Geel, B.V. Raspopov, O.M. et al. The role of solar forcing upon climate change, Quaternary Science Reviews 18 (1999), pg 331-338.

   The Svensmark set of papers like:

   http://www.sciencedirect.com/science/article/pii/S1364682697000011

   Additionally literature: there are many papers that find the sun's highly periodic (22 yr today) signal of the Hale cycle paleomagnetic reversals preserved in regional climate proxy data like tree rings and lacustrine varves, and this solar magnetic periodicity most likely related to cosmic rays (here is one with an overview of some of the occurences):

   http://link.springer.com/article/10.1007/s10933-008-9244-0

   Question 2:

   This list is just a fraction of the papers that support Cosmic Ray's forcing Earth's climate. What is the threshold for literature supporting cosmic rays to consider them as part of the climate system?

   It seems pages like this keep deflecting the data driven debate and not dealing directly with the issue- now CERN and several other respectable climate physics labs have collectively made a statement in 'Nature' about the uncertainty of the models: "This could raise the baseline aerosol state of the pristine pre-industrial atmosphere and so could reduce the estimated anthropogenic radiative forcing from increased aerosol-cloud albedo over the industrial period."

   I fear the threshold has been crossed and ignoring the context of the evergrowing literature and data about Cosmic Rays and the potential for a stronger sun for Earth's climate has become "DENIAL" of natural climate change potential that doesn't fit the IPCC dogma and introduces uncertainty in model predictions. Furthormore, this sort of denial could eventually erode public opinion of science and actually fuels the unwaranted denial of GHG influences and anthropogenic climate change.

   Cheers,

   Aaron S

8. KR at 13:19 PM on 31 July, 2016

   Aaron S - Your first reference details isotope proxy issues for cosmic ray and solar activity, not climate change, your second states "..although CR clearly do not contribute measurably to the 20th-century global warming trend, they do appear as a nontraditional forcing in the climate system on short interannual timescales, providing another interesting piece of the puzzle in our understanding of factors influencing climate variability"; and even that influence is only supported by a minority opinion.

   Add to that the facts that even the most generous estimates of CR influence are very very small, and that CR trends over the last century would by those supposed mechanisms be a _cooling_ influence, and it's no surprise that CR influences aren't considered a smoking gun in recent warming.

   But not ignored; there is considerable discussion of CRs in IPCC AR5 WG1, Chapter 7, Clouds and Aerosols. You might want to look there before claiming that some significant issue is being overlooked.

9. Aaron S at 15:34 PM on 31 July, 2016

   KR. Did you read the papers? Perhaps a reread is in order based on the consistent inconsistencies between your reply and the papers.

   The first reference ( http://m.pnas.org/content/109/16/5967.full) correlates the 9400 yr record to the equivalent Asian Monsoon proxy, which is not a global climate proxy, but represents a major regional data set. The authors conclude:

   " A comparison of the derived solar activity with a record of Asian climate derived from δ18O in a Chinese stalagmite reveals a significant correlation. The correlation is remarkable because the Earth’s climate has not been driven by the Sun alone."

   So I am unclear what you mean by "not climate change"? It seems you missed a major part.

   Second paper your quote is correct- the "Causation" was only found between CR and HadCrut3 after removing the warming trend. That is huge by itself and basically shows CR force climate, and yes the majority of modelers don't like this result- but I consider that as invalid reasoning for the validity of the conclusion. Also, please note that paper finds significant correlation between CR (AA) and the longer term (century scale) Gobal Temp trend (HC3), but not causation. The correlation is still significant and itself greatly strenghtens the case that CR play a role in climate change. It says little that it didn't pass the causation test becasue the Signal Noise Ratio was short given the data evaluated. I would be surprised to get a positive outcome for a centruy trend in a century and half of data. It would be a facinating study to use the 9400 yr data from the first paper and evaluate for causation as SNR increases with N.

   Third. You say "CR trends over the last century would by those supposed mechanisms be a _cooling_ influence". Now I am really starting to question if you even read the papers as there is a significant increase in solar activity over the last century-> stronger magnetic field -> less CR -> Less high albedo clouds -> more irradiance and warmer earth,  and the last century stands out as one of 2 major increases in solar activity based on the isotope data, and is exceptional in the AA index, and SSN. You are probably confused about the duration of the trend becasue it is true that the last decade the sun's activity has dropped. Of course, this is when the models start to run cool compared to the measured global temperatures of the satellite and Had Crut data sets, and given lags are a reality- we don't know the role of the decrease in solar activity yet.

   Final point- Yes the IPCC discusses this in the text, but which model itteration has a stronger sun that considers CR? The text concludes not to use for models, models are used for predictions, predictions are used by society.

   I hope this helps

   Cheers,

   Aaron S

10. MA Rodger at 23:23 PM on 31 July, 2016

    Aaron S @7&9.

    I fail to see that there is any "abundant literature that does exist supporting the influence of Cosmic Rays on Earth's climate." You certainly provide no evidence for such literature.

    Your first citation Steinhilber et al (2012) is certainly not part of such a literature as it tells us "TSI is taken as a proxy of solar activity" which is the particular position that Svensmark (& apparently you also) argue against.

    Perhaps you misinterpret the Steinhilber et al. comparison of their 9,200-year TSI record with the Dongge Cave δ18O record. This comparison is not used to demonstrate some grand sun-effect on climate but rather to show the wobbles in their 9,200-year record can be found in climate data.

    (Note also that both sets of data are detrended as the "climate record has a large long-term trend due to orbital forcing." And further, even detrended, "this correlation, however, can only explain 10% in the total decadal to centennial variance in the AM (ie Dongge Cave) record."  There is thus no grand Svensmark-type climate effect lurking in the Dongge Cave.)

    Your second citation Tsonis et al (2015) is the work of a bunch which includes Tsonis and Swanson, a pair well know for publishing dodgy climate work. (Indeed, Tsonis et al (2015) is challenged here & reply here). Yet here Tsonis & Swanson let down denialism, their paper stressing that they agree here with the IPCC, saying:-

    "it is important to stress that they (ie the findings) do not suggest that CR (cosmic ray) influences can explain global warming and should not be misinterpreted as being in conflict with the IPCC. Indeed, the opposite is true: we show specifically that CR cannot explain secular warming."

    I thus fail to see any coherent representation of an "abundant literature" supporting your position on the effects of cosmic rays on climate or your assertion that there is some sort of denial required to enable the IPCC's conclusions.

    I also find fault in your description of the trend in solar output, specifically that over the last century it has been a rising one. Solar output did rise strongly 1900-60 but has since been on a declining trend. There has been decline not rise for the last 60 years.

    Note that my position on all this is not anywhere greatly different to the comment by KR @8.

11. HK at 02:08 AM on 1 August, 2016

    I think Richard Alley pretty much killed the cosmic ray hypothesis here. The relevant part of the lecture starts at 42:00 if you don’t have the time to listen to all of it.

    Below is the chart he’s referring to, showing how the flux of beryllium-10 produced by cosmic rays greatly increased as the Earth’s magnetic field weakened by 90 % about 40,000 years ago. The climate ignored it and that should be the end of the story.



12. Aaron S at 13:12 PM on 1 August, 2016

    HK:

    I fail to see the connection between Earth's magnetic field, and the Sun's magnetic field. Are we are discussing climate relative to the sun's magnetic field deflecting Galactic Cosmic Rays? The Earth is something like a millionth the volume of the sun, and its magnetic field is weak regarding our solar system deflecticing Galactic Cosmic Rays.  The Sun is the player in our solar system.  I need to watch the video- perhaps I am missing something, but no way does Alley imply we are talking solar cosmic rays. Then I can Revert.

    MA Roger:

    Did you address the new Nature paper that states:

    "This could raise the baseline aerosol state of the pristine pre-industrial atmosphere and so could reduce the estimated anthropogenic radiative forcing from increased aerosol-cloud albedo over the industrial period."

    http://www.nature.com/nature/journal/v533/n7604/full/nature17953.html

    I am confused about a few of your points:

    MA states:

    "his comparison is not used to demonstrate some grand sun-effect on climate but rather to show the wobbles in their 9,200-year record can be found in climate data."

    Steinhilber et al (2012) Concludes:

    " A comparison of the derived solar activity with a record of Asian climate derived from δ18O in a Chinese stalagmite reveals a significant correlation. The correlation is remarkable because the Earth’s climate has not been driven by the Sun alone."

    MA states:

    "Your first citation Steinhilber et al (2012) is certainly not part of such a literature as it tells us "TSI is taken as a proxy of solar activity" which is the particular position that Svensmark (& apparently you also) argue against."

    Aaron S:

    I don't understand what you mean. TSI is used for a proxy of solar activity. Solar Activity includes TSI, as well as magnetic field strength. Solar Forcing is the combination of both (perhaps even additional contributions from the exagerated flux of the UV spectrum of TSI).

    Steinhilber et al (2012) (in Abstract):

    "The new cosmic radiation record enables us to derive total solar irradiance, which is then used as a proxy of solar activity to identify the solar imprint in an Asian climate record. Though generally the agreement between solar forcing and Asian climate is good, there are also periods without any coherence, pointing to other forcings like volcanoes and greenhouse gases and their corresponding feedbacks. The newly derived records have the potential to improve our understanding of the solar dynamics and to quantify the solar influence on climate."

    I think I am picking something up here: Are you guys thinking cosmic rays are from the sun- ie random solar storms that may interact with Earth? Just to be clear, the Svensmark theory are talking about Galactic cosmic rays from super nova explosions across the universe. These are relatively constant and originate from many different directions. The sun's magnetic field deflects these depending on strenght of solar activity, and then cloud cover is impacted by the amound of Galactic Cosmic Rays reaching the Earth.  Yes the Earth's field plays a minor role to but clearly minimal compared to the sun. Yes our sun's cosmic rays can play a role in short term cloud cover and "weather" not climate, but again this is not what the Cosmic Ray theory is implying.



    Regarding:

    Tsonis et al (2015)- Please don't bring character into a data debate- not professional. I need to read your links to understand the problems. Have to revert back later.



    MA issue with Solar Trend:

    Really in fig 3D of the Steinhilber et al (2012) you don't see in 1910 we were in a solar minimum, characterized by increased CR intensity (weaker solar mag field, more cosmic rays, more nuclei, more clouds, more albedio, less sunlight), then by 1950 to 2000 we were in a very large and sustained solar max. Basically you have a very steep slope 1910 to 1950, then a very minor slope 1960 to 2010. This is difficult for me to understand how you say: "specifically that over the last century it has been a rising one." Furthermore, it is ironic to me when lags are accepted for things like the hiatus, but the role of the sun is considered invalid if there is a lag from say ocean circulation or whatever. It is bad logic.







13. HK at 22:56 PM on 1 August, 2016

    Aaron S:

    The Sun’s magnetic field doesn’t stop all the cosmic rays from entering the inner parts of the solar system. The Earth’s own magnetic field stops much of the remaining from entering the atmosphere. A weakening of the Earth’s magnetic field – as happened during the Laschamp event – will thus have the same impact as the weakening of the Sun’s magnetic field during low solar activity.

    As the chart in my last post shows, the flux of beryllium-10 (a proxy for cosmic rays hitting the atmosphere) nearly doubled. That change is comparable to the typical changes from solar maximums to solar minimums, but it lasted several hundred years. That should make any significant climate impact measurable in the climate proxies, but there is none.

    In Alleys own words:
    "We had a big cosmic ray signal, and the climate ignores it. And it is just about that simple! These cosmic rays didn’t do enough that you can see it, so it’s a fine-tuning knob at best."

    Like I said in my last post: Richard Alley pretty much killed the cosmic ray hypothesis!

14. MA Rodger at 21:14 PM on 2 August, 2016

    ArronS @12.

    Do you not feel it is exceedingly presumptive of you to ask me, while examining your "abundant literature" on this subject of Svensmark's cosmic-ray conjecture, whether I have "addressed the new Nature paper"? Do you not realise that you had until now entirely failed to include this paper in your listing of "abundant literature"? And am I not disputing the existance of such an "abundant literature" and disputing your inclusion of papers you have so far listed? I am thus hardily the one who would know what you would or would not choose to include in your "abundant literature"!!

    This particular paper Kirkby et al (2016) 'Ion-induced nucleation of pure biogenic particles' does follow on from papers addressed in the Original Post so comment on this new paper's relevance could be requested from the OP authors.





    And if you do wish to include it in your list of "abundant literature", I would not go jumping to conclusions. In a Nature News item you will note Kirkby tells us of the results:-

    "The latest experiments suggest that it may have been cloudier in pre-industrial times than previously thought. If this is so, then the masking effect, and in turn the warming effects of carbon dioxide, might have been overestimated, ... (but) ... itis too early to say whether this is true in practice, or by how much, because there are so many factors that play into such projections,"

    And that comment is from one who in the past was supportive of Svensmark's conjecture. (The apperance in the paper's references of Kirkby (2007) 'Cosmic-rays & climate.' is indicative that the situation continues.) The other comment in the same Nature News item (from Knutti) says that the results will probably not affect the most likely projections of warming, as laid out by the Intergovernmental Panel on Climate Change. "Our best estimate is probably still the same," he says.



    Regarding your various confusions w.r.t. Steinhilber et al (2012), you first confusion concerns quotes from the conclusions of their paper. Identifying how they reach such conclusions may be worth your consideration. Note that the word "significant" is used in a statistical sense & the word "remarkable" may be used more in its original less-sensational sense, meaning 'something worthy of remark'. Your second confusion appears to show you do not truly understand the first sentence of the Steinhilber et al (2012) abstract (You helpfully quote it @13.) which is perhaps clearer than my chosen quote from the paper. And just to be totally clear, the concensus view is that cosmic rays do not impact greatly on climate. The Steinhilber et al. position is that cosmic radiation proxies can be used also as proxies for solar magnetism and so in turn as proxies for TSI. Note this is the first three items in your causal chain @9 but backwards. Increase in solar activity-> stronger magnetic field -> less CR -> Less high albedo clouds -> more irradiance and warmer earth. The final two items are entirely absent (even by implication) from Steinhilber et al (2012) and thus their position represents a concensus position. The position presented by Tsonis et al (2015) is different: that a cosmic ray effect does exist which isn't yet addressed by climate modelling but that it is importantly not responsible for the recent global warming. A third position which is the one you appear presently signed-up to is the Svensmark conjecture that asserts that a major portion of the recent global warming results from cosmic-ray variations.



    Concerning Tsonis et al (2015), the links @10 are presented for completeness & are in themselves of no great importance. Regarding Tsonis & Swanson, their seemingly-never-ending publications on what developed into their 'synchronised coupling' model of climate perhaps has apparently and thankfully ended with Tsonis & Swanson (2012). I feel that "dodgy" a reasonable description of it. If I address "character" it is the character of their writings not their persons so you high horse has no place here.





    Concerning TSI since 1900, you wrote @9:-

    "the last century stands out as one of 2 major increases in solar activity based on the isotope data, and is exceptional in the AA index, and SSN. You are probably confused about the duration of the trend becasue it is true that the last decade the sun's activity has dropped."

    Unless you want to revise it, this statement very clearly implies you see a "trend" which is "one of 2 major increases in solar activity" lasting a century. You may not feel a century-long rise is much different to six decades of rise & four decades of slight decline, but the arbitor in this is the global climate and for the climate, the difference would be stark indeed.

15. Tom Curtis at 21:45 PM on 2 August, 2016

    Aaron S @12:

    1)

    "I fail to see the connection between Earth's magnetic field, and the Sun's magnetic field. Are we are discussing climate relative to the sun's magnetic field deflecting Galactic Cosmic Rays? The Earth is something like a millionth the volume of the sun, and its magnetic field is weak regarding our solar system deflecticing Galactic Cosmic Rays."

    From Scherer et al (2006):

    "The Earth’s magnetic field shields us partly against galactic cosmic rays and solar
    particles. The lower energy limit needed for a charged particle to cross the Earth’s
    magnetosphere and access a specific position at the top of the atmosphere decreases
    with the geomagnetic latitude of the observer, resulting in a cosmic ray flux on Earth
    increasing poleward. The cosmic ray flux dependence on the geomagnetic latitude
    was already observed shortly after World War II. Figure 28 represents the variation
    of the flux of fast neutrons in the atmosphere with geomagnetic latitude measured
    by Simpson (1951, 2000)."

    (My emphasis)

    Fig 28:



    Fairly obviously, if galactic cosmic rays where unaffected by the Earth's magnetic field, the variation of cosmic ray flux with geomagnetic latittude would be inexplicable.  However, it is more interesting than that.  To start with, according to Dunai (2010):

    "Primary cosmic-ray particles with energies <10 GeV are modulated by the solar wind and by the Sun's 11-year solar activity cycle (Lal and Peters 1967, Eidelman et al. 2004). As a consequence of this modulation, galactic cosmic-ray particles with rigidities (see text box) smaller than 0.6 GV on average (Michel et al. 1996) cannot approach the Earth (at present the solar modulation potential parameter φ ranges from 0.3–1.2 GV, depending on solar activity; Michel et al. 1996, Masarik and Beer 1999, Usoskin et al. 2005, Wiedenbeck et al. 2005; see also Fig. 1.1).

    Near-vertically incident particles dominate the primary cosmic-ray flux near the Earth's surface (Dorman et al. 1999; see also Section 1.3). Consequently, primary particles approaching the Earth's geomagnetic equator travel perpendicular to the geomagnetic field, whereas near the poles they travel essentially parallel to the magnetic field lines. Virtually all rigidities are permitted at the poles, while near the equator, rigidities well in excess of 10 GV are required to approach the Earth. The solar modulation limits the lowest energies at the poles to > 0.6 GV, having a consequence that the cosmic-ray flux does not increase monotonously approaching the poles, but levels off at rigidities close to the solar modulation potential (Fig. 1.4). Furthermore primary particles with energies close to the solar modulation potential are not energetic enough to generate a secondary particle cascade that can reach the surface. The resulting break in trend at high latitudes is referred to as the ‘latitude knee’. The decrease of the cosmic-ray flux with decreasing latitude below the latitude knee is sometimes referred to as the ‘latitude effect’."

    (My emphasis)

    In short, the rigidity induced by the Earth's magnetic field at the equator is approximatly 17 times that induced by the Sun, but while that induced by the Sun filters particles based on momentum equally regardless of terrestial location, the much larger terrestial rigidity at the equator falls to zero at the poles.  That means in turn that the Laschamp event resulted in a large increase in bombardment of the Earth by galactic cosmic rays at the equator, but virtually zero effect at the poles.  It also follows that the lack of climate perturbation at the Laschamp event represents a serious problem for the GCR/climate connection.

    This point is proven by the close correlation between inverted Be10 production, and the strength of the Earth's geomagnetic field:



    (Source)

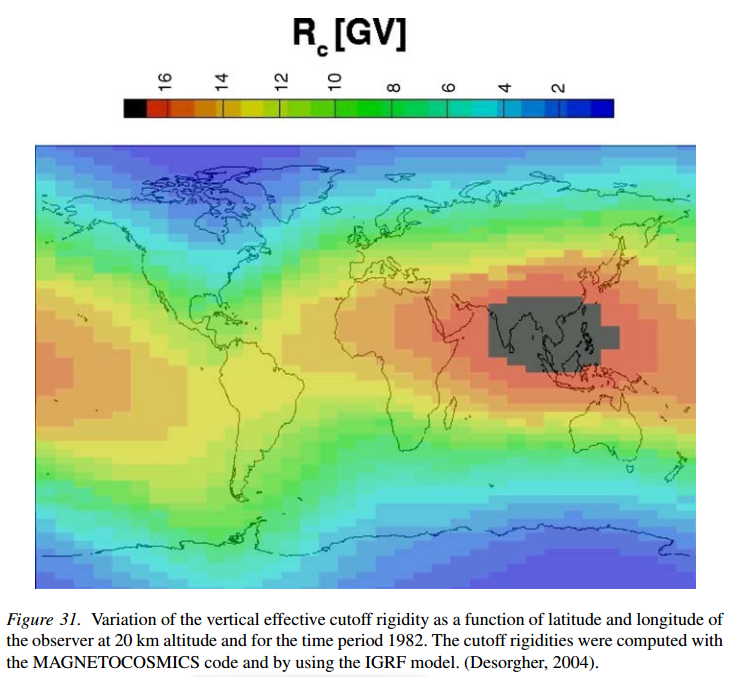

    2)  Pursuing the effect of the Earth's magnetic field further, it means that if GCR do impact cloud albedo they will do so most strongly were the cut off rigidity is smallest.  In fact, a map of the cut off rigidity should also be an inverse map of the strength of the effect:



     That creates further problems for the theory.  First, it means the strongest effect is at the poles, ie, where clouds overly ice and snow so that any change of albedo in the clouds will have limited effect on the albedo fo the Earth.  Second, because of the angle of incidence, insolation per square meter at the surface (or cloud top) varies approximately with the cosine of latitude - approaching zero at the poles.  So, the strongest impact of GCR on cloud albedo (if there is one) will be located where it has minimal impact on the energy budget.

    3)  I passed without note above that the cut off rigidity due to solar effects varies from 0.3 to 1.2 GV over the solar cycle, ie, by a factor of 4.  In contrast, TSI varied by 0.12% between the solar maximum of 1958 (the strongest on record) and the solar minimum of 2008 (the weakes recent minimum).  That difference in effect means it is not reasonable to assume that the GCR effect on climate (if there is one) is a linear function of TSI.  Unfortunately I know of no formulation be advocates of the theory of what the relationship will actuall by (other than an assumed linear relationship).  If somebody does know of such a formulation, I would welcome a link to it.  Absent a formulation, however, the 'theory' that GCR effect climate is no sufficiently advanced as to even quantify the forcing effect.  Indeed, given that the strongest effect will be at the poles where the greenhouse effect of clouds is far more significant than their albedo (because of the albedo of the underlying snow and ice), it cannot even securely determine the sign of the effect.  That means in scientific terms it is not yet a theory, but at best a hint as to how a theory might be developed.

    4)  Despite (3) above, I will follow standard practise in this case and use TSI as a proxy for TSI plus GCR forcing.  I will justify this base on the fact that if TSI plus GCR forcing increases at less than a linear rate with respect to increases of TSI, any GCR effect will be minimal and largely irrelevant.  If it increases at greater than a linear rate, that should exagerate the apparent effect of TSI on climate even more than is shown by the linear assumption.  Failure of a significant correlation between TSI and temperature will therefore show that the GCR effect is either very weak, or rises at a less than linear rate with rising TSI (and therefore is self damping).

    Given the above, here is the normalized running eleven year means of TSI and Global Means Surface Temperature (BEST LOTI) from 1850-2008:



    It is very clear that there is a poor correlation between the two.  Indeed, the correlation between the unnormalized, annual values is just 0.416, with an r^2 of 0.173.  Intuitively that means TSI explains 17.3% of the variation in temperature at most.  Likely it explains much less once we allow for coincidental events and independence effects.  For comparison, the correlation between CO2 concentration and the BEST LOTI (1850-2013) is 0.902, with an r^2 of 0.814.

16. Aaron S at 23:46 PM on 17 August, 2016

    I sincerely do appreciate such a thought out and well written response by Tom Curtis and others. So I want to reply with my concerns.

    1) You are correct- the correlation is poor since about 2000. However, if you factor in this was a massive solar max based in isotopes and SSN and if you consider lags in the system associated with oceanic circulation (like AGW theory does for the delay in Antartic warming or PDO and the Hiatus) then you could increase stored heat and continue to even warm beyond the decrease in forcing when stored heat is realeased later. I have zero issue with the PDO storing heat for an entire negative positive couplet and there are much longer circulation cells. Let us remember to- I do believe in AGW and CO2 as a GHG- I just think ignorming solar activity and cosmic rays is not valid based on existing data. Also there is the obvious- the correlation between slope of warming trend in Hadcrut and A2 model warming has poor correlation over the same duration (The Hiatus is Real- Roberts et al. Nature CC 5, 2015). So correlation in this case is not a good argument either way as we are both aware climate is a complex system with feedbacks and lags.

    2) Maunder minimum to modern maximum is a totally different situation than a Schwabe 11 yr minimum during a max or a decent from a max and we have not observed the impact from direct obserbations; the isotope record (Steinhilber et al) shows the intensity of the dipole is about the same (a little less for the dipole) as the intensity during the change from the Maunder to the modern max. Furthermore, the Maunder-scale cycles have much higher periodicity than the dipole- which means the wave has more energy given about the same amplitude. Period is important and if I speculate and dream a bit perhaps there is a dynamic equilibrium reached with longer duration changes related to the dipole that minimizes the impact. So I don't get your argument or suggestion that it is 17x the strength because isotopes (only data we have) say otherwise and the higher frequency change also supports more energy for the Sun. So considering that you don't have direct measurments to address anything but the interval during a solar max it seems a rather biased evaluation to me, but perhaps I am missing something as this is a stretch for my understanding. Thanks for making me think about this- it was a pleasant challenge and good learning.

    3) Short term solar storms may not be long enough duration to trigger a response. The causal relationship between CR and intra annual solar activity is weak, but they are related to intra-annual events not short pulses.

    4) The Earth's magnetic field is dynamic and dominates the Tropics- Agreed. Thanks for sharing that data.  I think you need to add "during a solar max" because we don't know what the Maunder looked like- but it did likely impact Northern latitudes. Perhaps this explains the regional nature of the Little Ice Age.

    5) You do not address the very strong correlation between the monsoon and cosmic ray intensisty. Correlation requires caution, but each vary greatly in time with a significant decadal scale lag of climate behind magnetics. THis pattern supports causation rather strongly. Nor do you address the quantified causal relationship at the intra-annual period in the other paper. Also, there is data from other proxy that climate responds to the sun's magnetic field. Each support the point in a independent way.

    I am fortunate- I am arguing that there is now sufficient evidence to include a stronger sun scenario into the climate models. It is much more difficult to defend than your position to not consider the data validn. Your data is to short (during the max) or to long (100k yr doesn't have century scale resolution) for me to say it meets this threshold. Cosmic rays need included in the models.

    Thanks for the opportunity to learn- you are a good teacher.

17. Acouphène at 22:29 PM on 30 October, 2016

    New paper from CERN experiment : "A significant fraction of nucleation involves ions, but the relatively weak dependence on ion concentrations indicates that for the processes studied variations in cosmic ray intensity do not significantly affect climate via nucleation in the present-day atmosphere."

    http://science.sciencemag.org/content/early/2016/10/26/science.aaf2649

18. Tom Dayton at 00:38 AM on 6 August, 2017

    August 2017 commentary article by J.R. Pierce in J. of Geophysical Research, Atmospheres--"Cosmic rays, aerosols, clouds, and climate: Recent findings from the CLOUD experiment." Abstract:

    The Cosmics Leaving OUtdoor Droplets (CLOUD) experiment was created to systematically test the link between galactic cosmic rays (GCRs) and climate; specifically the connection of ions from GCRs to aerosol nucleation and cloud condensation nuclei (CCN), the particles on which cloud droplets form. The CLOUD experiment subsequently unlocked many of the mysteries of nucleation and growth in our atmosphere, and it has improved our understanding of human influences on climate. Their most recent publication [Gordon et al., 2017] provides their first estimate of the GCR-CCN connection, and they show that CCN respond too weakly to changes in GCRs to yield a significant influence on clouds and climate.

19. Mick Stupp at 06:44 AM on 22 August, 2017

    I keep coming across a graph showing correlation between sun spot cycle length and temperature, which purports to explain the cooling from 1940 to 1975. There's and example of it here: http://www.paulmacrae.com/wp-content/uploads/2008/06/sunspots-climate-friends-of-science.gif

    I can't find a robust reference to this, does anyone know its origins? Also, has anyone seen this covering a longer period in history?

    Assuming it is accurate it does suggest a good correlation, but this has to be a complex one. TSI alone does not explain it as this varies surprisingly little. CLOUD seem to have found strong evidence that extremely small amounts of aerosols have big effects on cloud formation, but the role of cosmic rays still seems inconclusive.

    Again assuming the above mentioned graph is correct, are we still searching for an explanation for the apparently good correlation between sun spots and temperature? Anyone know what CLOUD's future agenda is in this regard.

    Response:

    [PS] Fixed link. Please see "Solar Cycle Length proves its the sun" myth. Any replies, comment on that thread please, not here.

    You might also note that gif from anti-science group "Friends of Science" is of the data without the arithmetic mistake corrected, despite this being known since 2000.

20. MA Rodger at 22:10 PM on 22 August, 2017

    Mick Stupp @19,

    That graph appears here having been "adapted by Dr. Tim Patterson.from: Friis-Christensen, E., and K. Lassen, Science, 254, 698-700, 1991." Thus the original is Fig 2 of that paper. The level of nonsense and error engendered by that particular exercise in curve-fitting is set out in this SkS post.

21. Patrick K at 11:16 AM on 10 September, 2017

    Hi there, this is my first post to your site and is more of a question than a comment.

    I recently had the misfortune of watching the documentary "The Cloud Mystery" which presented Henrik Svensmark's Cosmic Ray Theory (CRT) as being the driving force for climate change. The documentary did not appear to be solid science to me which is why i was surpised CERN appeared to be reasearching CRT for climate change.  Aside from the documentary's lack of defining or explaining scientific terms, and, misrepresentation of the fundementals Geology and Atronomy, i.e., our solar system does not move to different arms of our galaxy as we orbit the galactic center, the documentary really didn't adress a basic question. Do we need cosmic rays to create aerosols for cloulds to form? Are cosmic rays the only way to get aerosols in the astmosphere? Is there or was there ever a shortage of aerosols in our atmosphere that prevented cloud formation thus making our asmosphere supersaturated with water vapor that couldn't condense? This is just my cursory look at the CRT for climate change, but it appears to me that the CRT may be a solution to a problem that doesn't exist.

22. MA Rodger at 06:26 AM on 11 September, 2017

    Patrick K @21,
    Your specific questions (and also your comments about the galaxy) raise some subjects that are complex and so not yet entirely resolved by science. However it is straightforward to answer your last two questions (2) that cosmic rays are indeed not the only route to forming aerosols, and (3) if there were no aerosols their absence would have fundamental impacts on climate. You would still get ground condensation and presumably any supersaturated atmosphere would still form clouds but at much greater altitudes. Globally that would be a recipe for a run-away greenhouse effect.


    That leaves your first question which is perhaps better framed by asking "How important are cosmic rays in cloud formation?" Svensmark's work is entirely unreliable on this matter, but that is not because he fundamentally misrepresents the motion of the solar system through the galaxy.

    The present structure of the outer Milky Way is now understood but there is still scientific debate over the dynamics of galactic arms. Yet there are surely no theories that don't included the sun moving between arms of the galaxy, this on a scale of ~100 million years/arm. One problem for the likes of Svensmark is that the arms are not neatly positioned (as described by Overholt et al (2009) featured in the OP shows).
    Yet Svensmark (2012)'s calculated Super Nova rates (see his Fig 6) somehow still manage to provide a pretty strong rhythmical pattern.


    At present the sun is also is moving away perpendicular to the disc of the galaxy and this is part of an oscillation which sees the sun returning through the disc every 35million years or so.
    Svensmark seems to ignore this ~35Ma oscillation. Not so Shaviv, one of his co-presenters in "Mystery of Clouds." The work of Shaviv et al (2014) "yields a prominent 32 Ma oscillation with a secondary 175 Ma frequency modulation. The periodicities and phases of these oscillations are consistent with parameters postulated for the vertical motion of the solar system across the galactic plane, modulated by the radial epicyclic motion." Shaviv et al do not then make a 'Svensmark leap' and so do not insist this finding proves a cosmic ray effect. And quite right too, especially for the 175Ma finding.
    Of course, all this palaeo-climate stuff will not directly impact the climate variability of the last few decades. Yet if we assume the mechanism is resulting from cosmic rays and if you can assess the size of the palaeo-cosmic ray wobbles, it could potentially suggest a size for any decadal cosmic ray effect today. Such a step does not appear to have been made of late, even speculatively. If it were, it would be remain highly controversial.


    As for the work at CERN, it provides a more direct but still complicated method of assessment for the impact of cosmic rays.
    But we can have a bit of fun assessings the bold assertions of Svensmark and that is a much easier task. If cosmic rays are a big, big driver of climate and responsible for the warming of recent decades, we should be able to see some form of correlation between temperature and cosmic rays over the last decade. So does this SkS post which is showing data up to 2012 support Sensmark?

    Recently, the level of cosmic rays has been very high of late (this web-page provides the latest data) and these recent high level of cosmic rays should have been peppering the sky with clouds and so should be giving us a big big drop in global temperature. Thus it is a bit of a mystery that we actually find "sorchyissimo!!" with the last four years in turn the warmest on record and this year set is to find a place in the top three.

23. Mick Stupp at 10:19 AM on 8 September, 2018

    Dr Kirkby’s discovery of the significance of biogenic vapours on aerosols is  remarkable, but light on the chemistry and I’m struggling to find more detail; anyone have any good references? (i.e. what are biogenic vapours and what influences their global production rate?)

    Also, seems to me likely there are some interdependencies here, e.g. photosynthesis converts more CO2 in stronger sunlight, but if this same sunlight also increases biogenic vapour production then this could increase cloud cover and regulate both processes. I’d like to have a stab at some transfer functions to look for instabilities there; but no idea how to estimate the biogenic vapour component.

    Finally a belated thanks to MA Roger, post 20 above, for the reference. I must say, as suspect as that graph clearly is, more recent, reliable data does seem to reproduce it, at least in part. That, as I understood it, formed a significant part of the first of CLOUD’s goals.
